Compatible with generator models: MXR2300, MXR3500, MXR3500S, MXR4000GT, MXR4000

The MaXpeedingRods Electric Fuel Pump (MXR Series) is specially engineered to provide continuous and reliable fuel supply to your generator. It eliminates the need to stop the generator, lift heavy fuel cans, or refill manually. Simply attach the fuel pump to your generator’s filler neck and connect the fuel hose to your fuel container. The pump is powered directly by the generator during operation.

Features:

1. Automatic Fuel Level Sensor
   The built-in sensor continuously monitors the fuel level and automatically transfers fuel when required, extending the generator’s runtime without manual refilling.

2. Easy Operation
   Simple to use – start monitoring with a single button press. The quick-connect fuel port ensures secure and effortless attachment to an external fuel tank.
   (Fuel tank sold separately.)

3. Wide Compatibility
   Designed for MaXpeedingRods compact inverter generators and compatible with: MXR2300, MXR3500, MXR3500S, MXR4000GT, MXR4000.

4. Complete Accessory Set
   Includes all necessary components for automatic fuel delivery:

   • 1 × Electric Fuel Pump

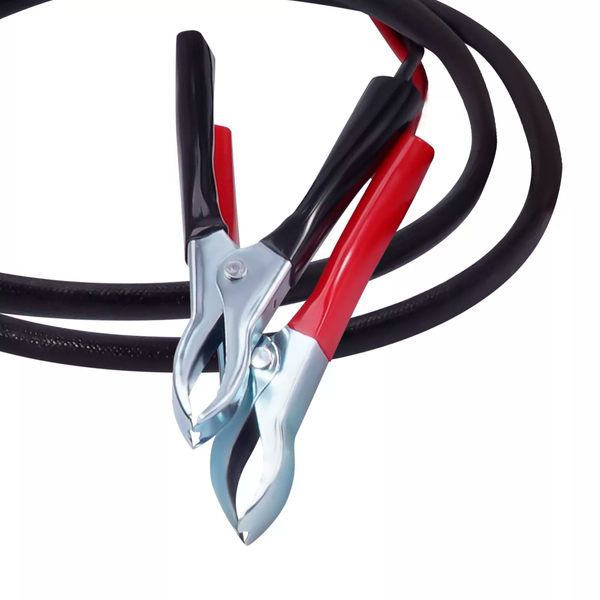

   • 1 × DC 12V Power Plug (Alligator Clips)
   • 1 × DC 12V Power Plug

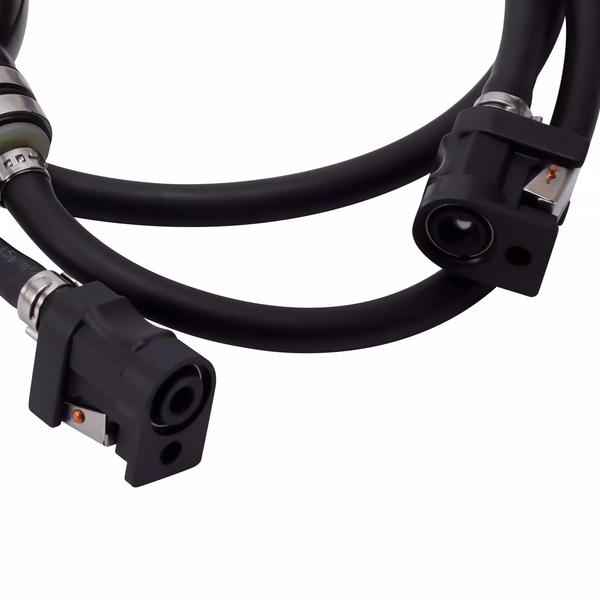

   • 1 × Fuel Hose
   • 1 × DC 12V Power Cable

5. Two Power Supply Options

   • If your generator has a DC 12V output port, the pump can be powered directly from it.
   • If not, you can use an external 12V DC power source (e.g., a 12V battery) to operate the pump.

6. Warranty & Support
   MaXpeedingRods guarantees that the electric fuel pump is free from manufacturing defects under normal use for 12 months from the date of purchase. Lifetime technical support and after-sales service are included.

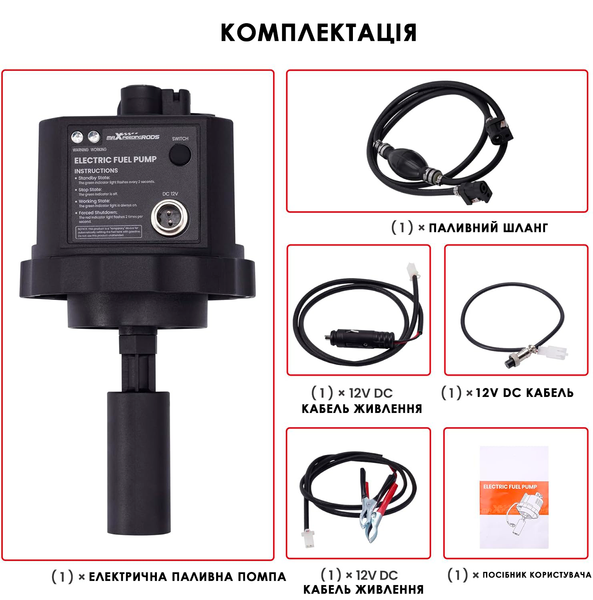

Package Includes:

• (1) × Electric Fuel Pump
• (1) × DC 12V Power Plug (Alligator Clips)
• (1) × DC 12V Power Plug
• (1) × Fuel Hose
• (1) × DC 12V Power Cable
• (1) × User Manual

Notes:

1. The outlet fitting on the chosen fuel tank must be compatible with the supplied fuel hose connector.
2. If the pump does not reach a high fuel level after 10 minutes of operation, it will automatically shut off and enter protection mode. Check for sufficient fuel, blocked lines, or pump malfunction.
3. After pressing the power button, the pump will delay for 5 seconds before starting.
4. After an emergency stop, disconnect the power source or press the power button again to restart the pump.
